Description
Technical features
| Number of channels: | 01 |
| Operating voltage: | 176 ~ 300VDC @0.5 Ohm/14~24 Baterias |
| Maximum power @ 164VDC- 0.5 Ohm: | 80,000W RMS (For competition) |
| Maximum power @ 227VDC- 0.5 Ohm: | 40,000W RMS |
| Input sensitivity: | 310mV (Gain 100%) @ 1 Ohm |
| Harmonic distortion (THD): | 0.3% |
| Signal to Noise/Ratio: | >95dB |
| Frequency response: | 10Hz ~ 8KHz (-1dB) |
| Input impedance: | 15K Ohms |
| Minimum supply voltage: | 10VDC |
| Maximum supply voltage: | 340VDC |
| Idle consumption: | 52mA |
| Maximum musical consumption @ 0.5 Ohm: | 67A (20,000W RMS) / 91.5A (40,000W RMS) |
| Maximum musical sine wave @ 0.5 Ohm (60Hz): | 134A (20,000W RMS) / 183A (40,000W RMS) |

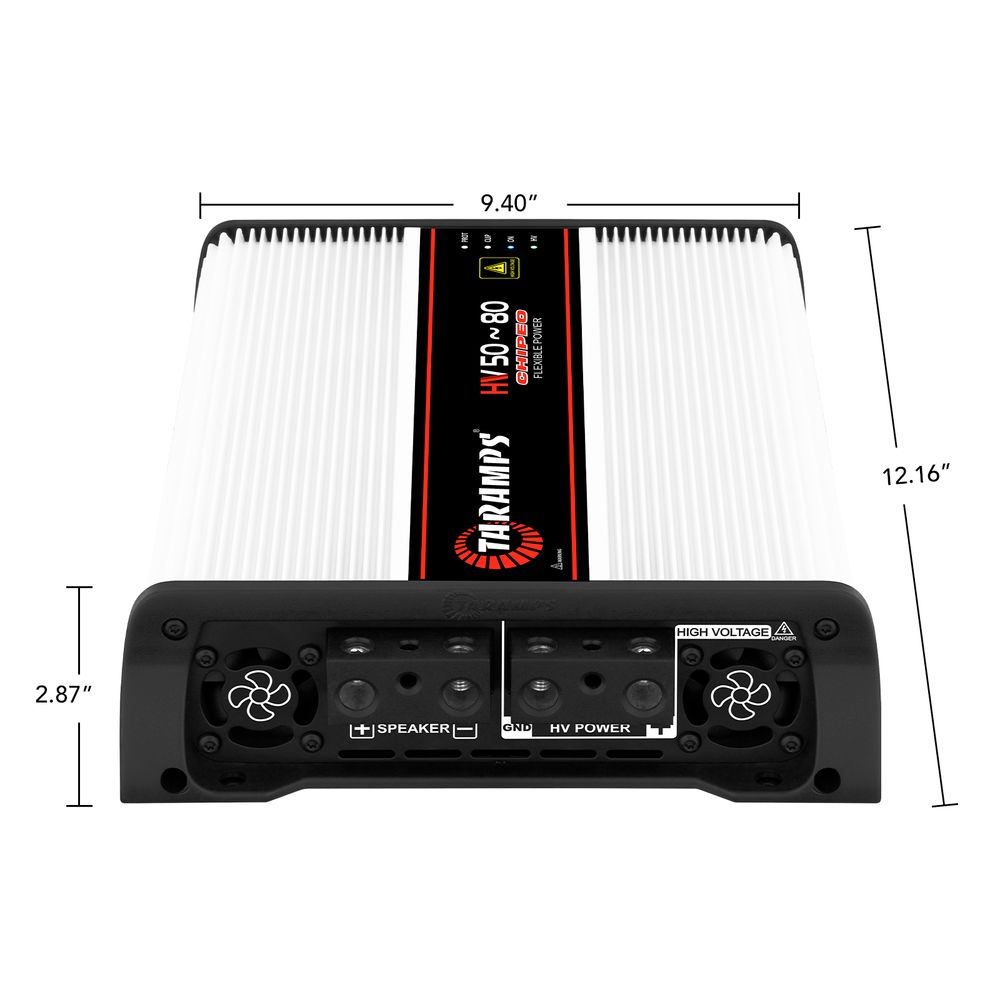

| Dimensions (WxHxD): | 239 x 73 x 309mm (9.40'' x2.87'' x12.16'' |
| Weight | 3.58Kg |
