Description
Description

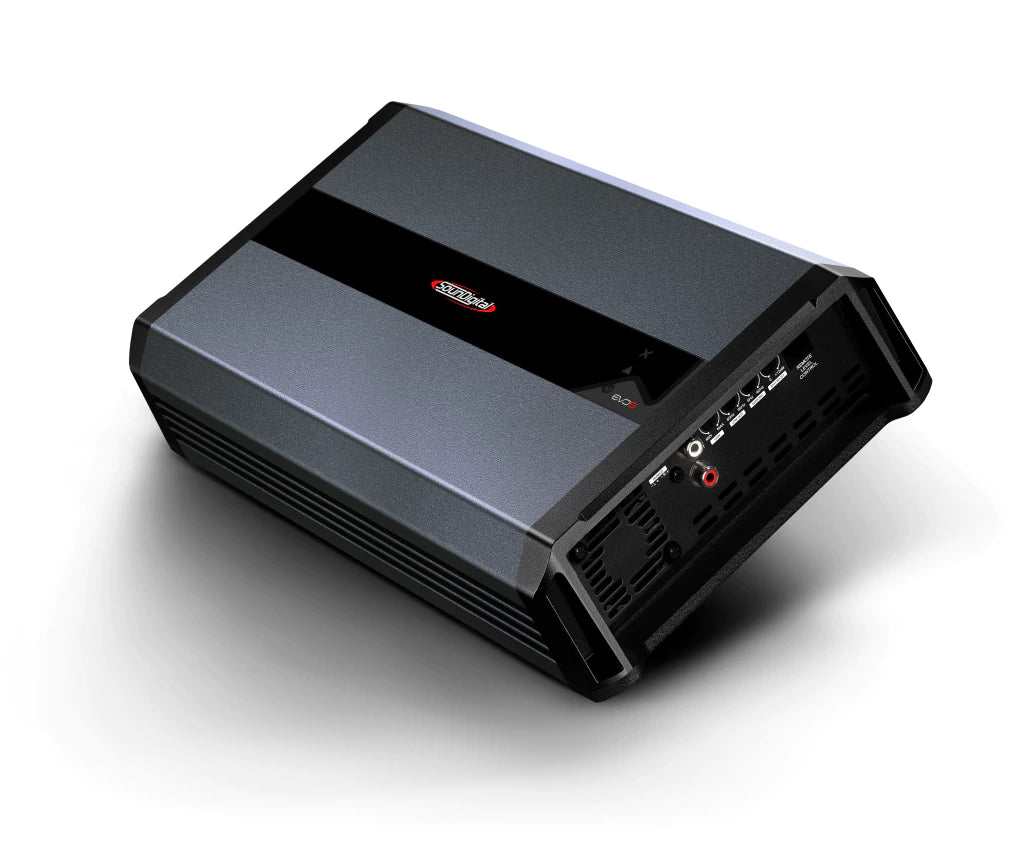

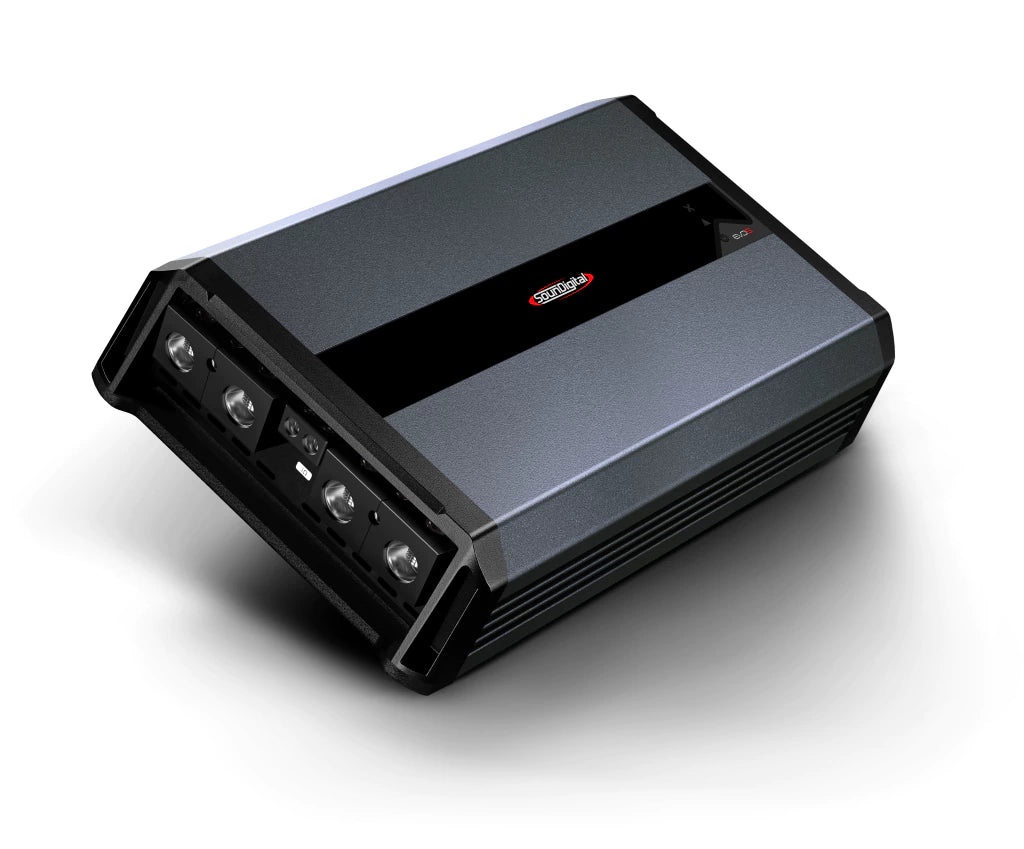

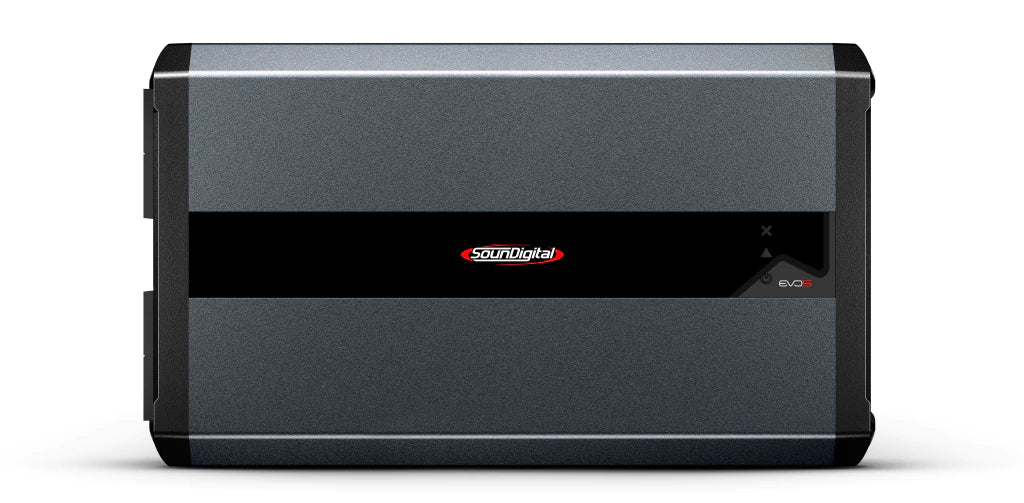

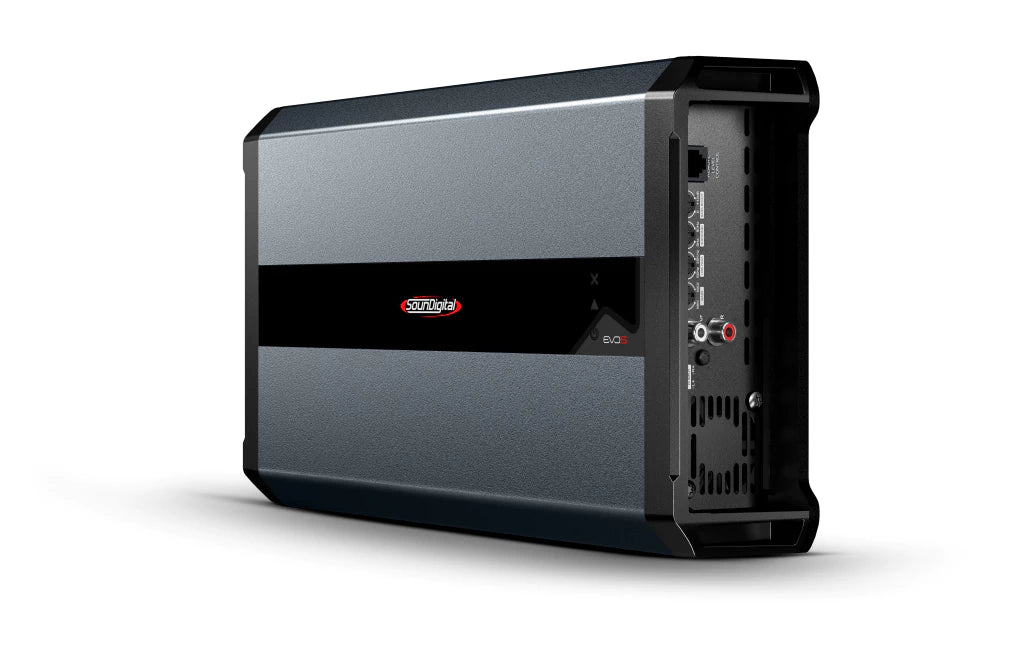

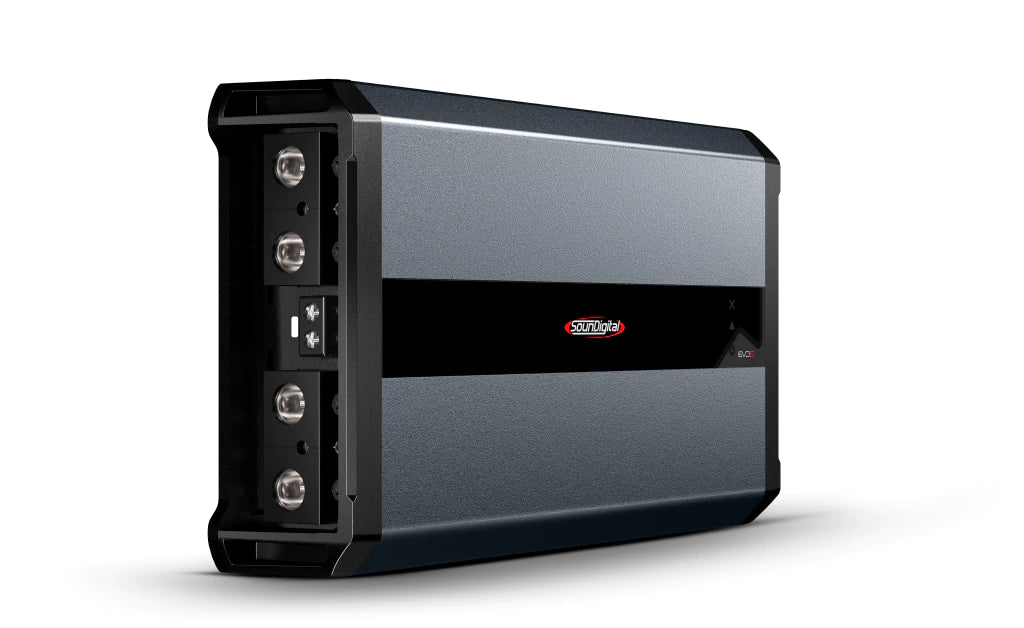

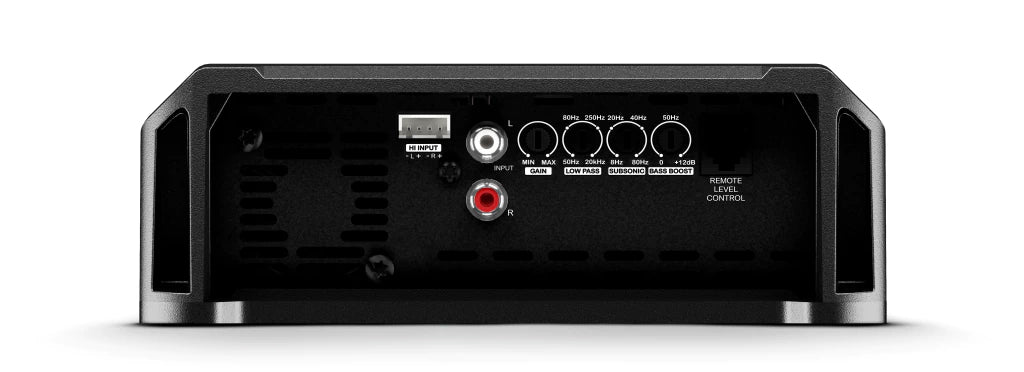

The SD8000.1 EVO 5 is a compact and modern amplifier that delivers 8000W RMS of power on one channel.
It features the innovative MCPCB board, increasing its efficiency and ensuring much more consistent performance.
Modern, high-performance components distributed in intelligent designs ensure better performance, temperature management, and high quality and power.
General Specifications
• Power @ 2Ω: 1 x 8000 Wrms
• Power @ 4Ω: 1 x 5360 Wrms
• Frequency Response (-3dB): 8Hz ~ 20kHz

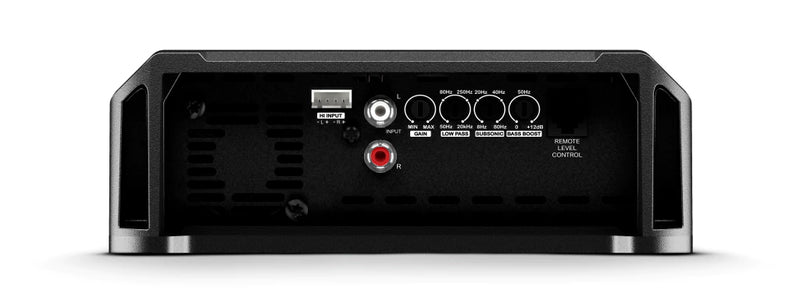

• Subsonic Filter (12dB/octave): 8Hz ~ 80Hz
• Low-Pass Filter (12dB/octave): 50Hz ~ 20kHz
• Bass Boost: 0dB ~ 12dB @ 50Hz
• Supply Voltage: 9V ~ 16V
• Signal-to-Noise Ratio: @ 1Ω: 92dB @ 2Ω: 85dB
• Input Sensitivity (RCA): 0.2V ~ 2V
• Input Sensitivity (High Input): 1.3V ~ 15V
• Power Consumption: 381A
• Maximum power consumption: 762A
• Total efficiency: 80%
• Damping factor (@100Hz nominal impedance): >2000

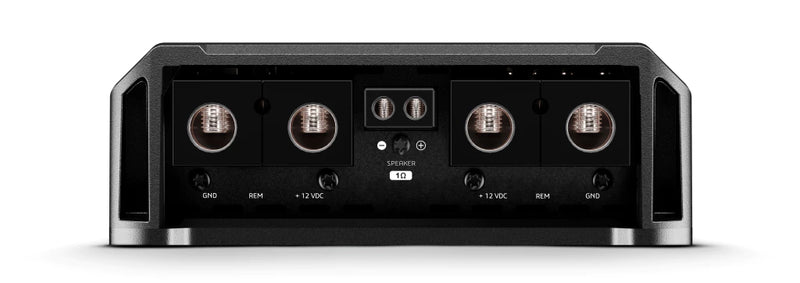

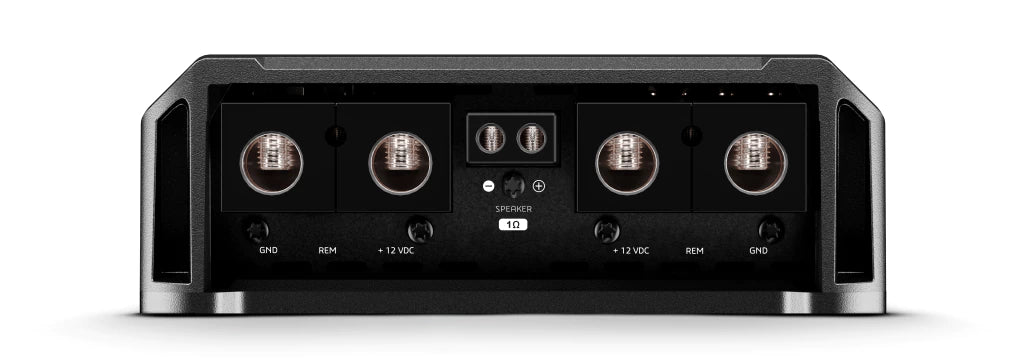

• Power cable: 70mm² (00 AWG)
• Speaker cable: 2 x 10mm² (7 AWG)
• Recommended fuse (musical): 2 x 200A
• Recommended battery (minimum for musical use): 400Ah
Dimensions
• Width: 18 cm
• Length: 31 cm
• Height: 6.32 cm
• Weight: 3.99 kg
